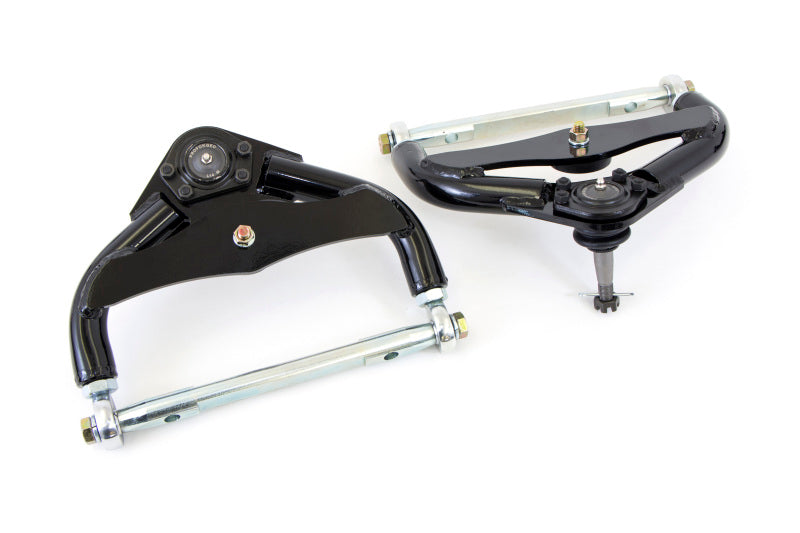

UMI Performance 78-88 G-Body S10 Tubular Front Upper A-Arms Adjustable

UMI’s 3056 adjustable upper a-arms are designed to excel in Pro-Touring, road race, auto-x and hot street corner carving. The race quality rod ends provide shim-free camber and caster adjustment along with ultimate smooth travel. This arm features a relocated ball joint pad to increase caster and improve stability and steering feel as well as a shortened cross shaft to ball joint distance. We recommend the 3056 arm for all racing applications. Arm must be used with tall spindles when using standard height ball joints. 100% manufactured, tested and raced out of Philipsburg, PA – USA

• Note: Upper a-arm P/N 3056-1 includes standard height ball joints and must be used with tall spindles. In most cases shims are not needed. Shims may still be required on some applications.
• Relocated ball joint pad for increased caster and improved steering feel without excess shims.
• May also work in conjunction with other lower a-arms and/or spindles (contact UMI to discuss).
• Package includes recommended alignment specs and detailed installation instructions.
• Direct bolt-in compatible with factory or UMI lower a-arm and tall spindles.
• Designed, tested, manufactured and raced in Philipsburg, PA-USA.
• 0.120” wall thickness 1.250” diameter DOM tubing.
• 4130 CrMo cross shafts, CNC machined & zinc plated.
• TIG welded for superior strength and clean looks.
• Laser cut ball joint mounting pad.
• Polyurethane bump stops included.
• Travel limiting bolt compatible.
