S&S Cycle 2007+ BT B-Style 4-3/8in Stroke Flywheel Assembly w/ Sprocket Shaft - 1035 TPW
S&S Cycle
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Choose options
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.

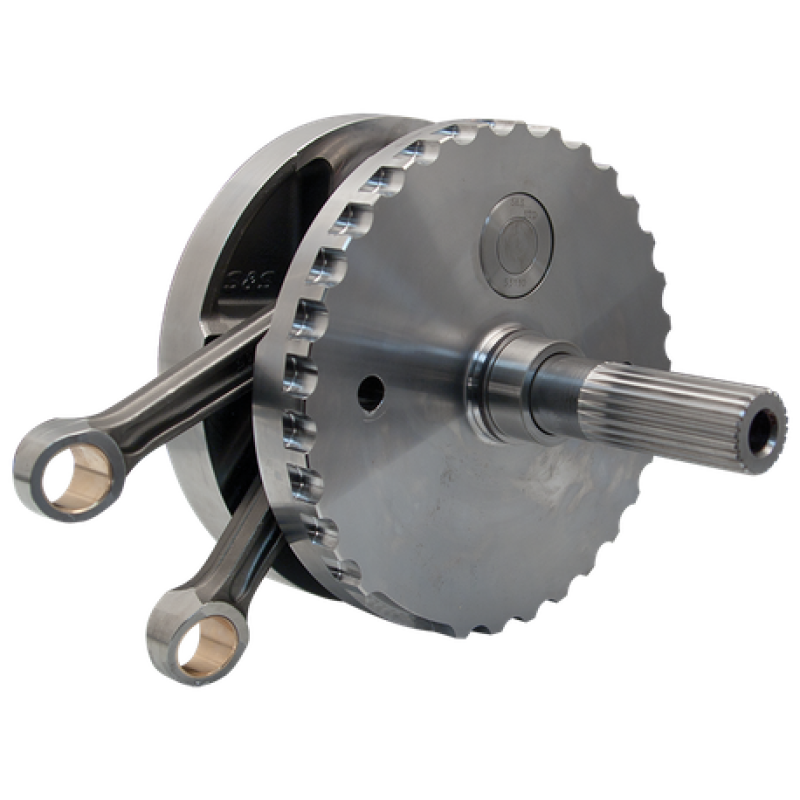

This 4-3/8" stroke 8-1/2" diameter flywheel assembly replaces the original flywheels 2007-'16 HD® big twin engines, when using performance or big bore pistons. Wrist pin ends of connecting rods are full width (not tapered). Sprocket shaft has a stock style bearing race pressed on.
- Assembly is trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams
- Flywheels are CNC machined from heat-treated, closed die, steel forgings, which are 114 percent stronger than late style stock steel flywheels
- Fully assembled with premium quaility S&S® heavy duty 7.659" connecting rods, with full width wrist pin ends, and dynamically balanced
- The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels
- This flywheel assembly is for crankcases with stock roller style sprocket shaft bearing
- Pinion and sprocket shafts are forged as part of the flywheel
- Pinion shaft has sprocket to drive balancer chain
- Flywheel assembly is three piece design
