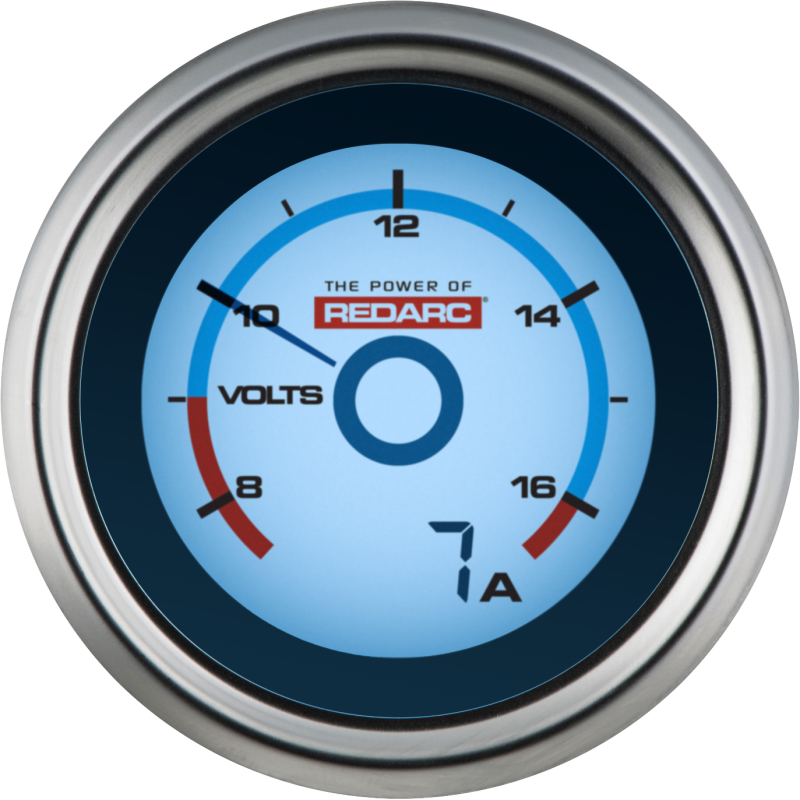

REDARC Single Battery Voltage Gauge w/Optional Current Display - 52mm

Sale price$269.00 Regular price$295.90
Sold out

Shipping calculated at checkout

REDARC

SKU: RDCG52-VA MPN: G52-VA GTIN: 9338628003549
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.

The REDARC Single Voltage 2-1/16 (52mm) Monitoring Gauge enables LED/LCD display charge performance monitoring of either the main or auxiliary battery of 4WDs, campers, caravans, motorhomes, and other like vehicles. It provides a visualization of charging performance and battery health of your auxiliary battery. If there is an alternator or system failure, the voltage reading will be low and drop as the battery discharges. In the case of an overcharge condition, the gauge will climb above its normal zone. There are pre-set alert levels (16V) to notify you of these changes by altering the gauge backlight to either amber or red. The G52-VA will also notify you with a beep when the vehicle ignition is on. The G52-VA comes equipped with an optional 100A-rated current display. This monitors the amount of current to or from your main or auxiliary battery. To equip the gauge with this functionality, purchase the REDARC Hall Effect Current Sensor (GS-AMPS). Connect the G52-VA to a vehicle with a 24 volt ignition via a REDARC 24 to 12 Volt Adaptor (GA-2412V) but know only a 12 volt battery can be monitored. The gauge is made of satin chrome bezel and comes with 13 backlight color options. There are multiple alert levels that will notify you as your battery voltage drops below 9V or climbs above 16V. The display illuminates with park lights turned on so you can check battery health without turning on the ignition. To enhance the lighting of the G52-VA, REDARC recommends purchasing the Enhanced Lighting Controller (GA-ELC). The GA-ELC can be used when you don't have a dimming circuit to connect your gauge to or the dimming circuit in your vehicle does not dim the REDARC gauge to your preference.
