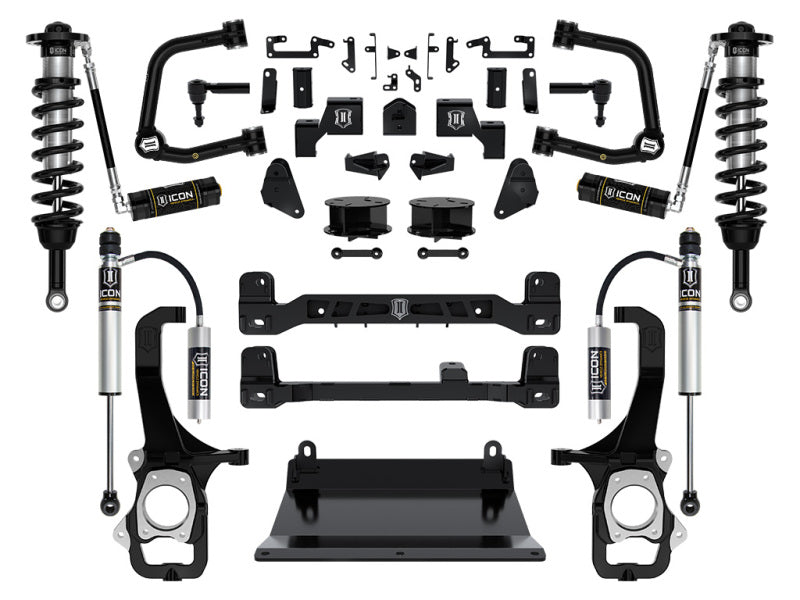

ICON 22-24 Toyota Tundra 6in Stage 3 Suspension System Tubular Uca

The ICON Vehicle Dynamics Stage 3 6" Suspension System is engineered to maximize the capability of the 2022-2026 Toyota Tundra, delivering exceptional ride quality, increased wheel travel, and the durability required for serious off-road use. Vehicle-specific tuned 2.5 Series front coilovers with remote reservoirs provide outstanding damping performance while increasing fluid capacity and improving heat dissipation for consistent performance during extended off-road driving. The system delivers up to a 40% increase in front wheel travel over stock without overstressing OE suspension components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, preserving ground clearance while minimizing CV joint angles. Tubular upper control arms equipped with ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide increased strength, exceptional durability, improved caster correction for enhanced drivability, and 90 degrees of total articulation for unrestricted suspension movement. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras.

• 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• Maintains factory track width
