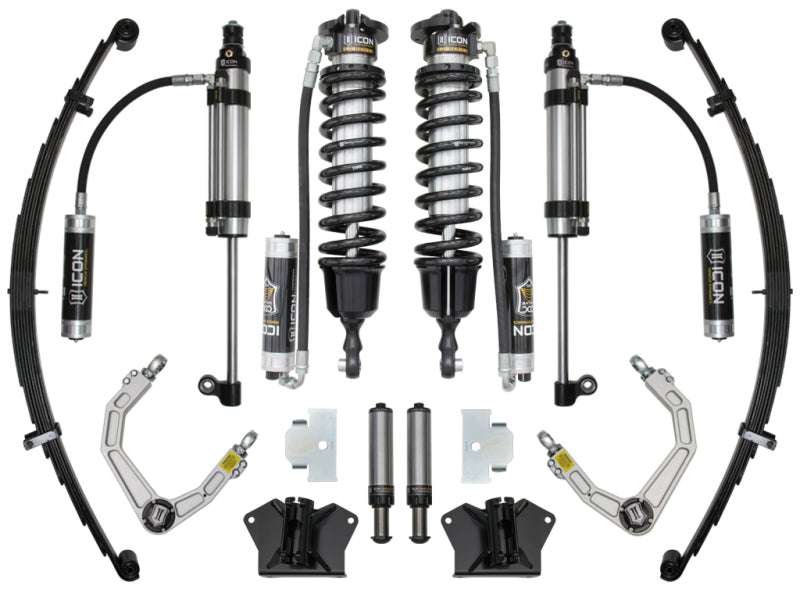

ICON 07-21 Tundra 1.63-3in Stage 3 3.0 Suspension System

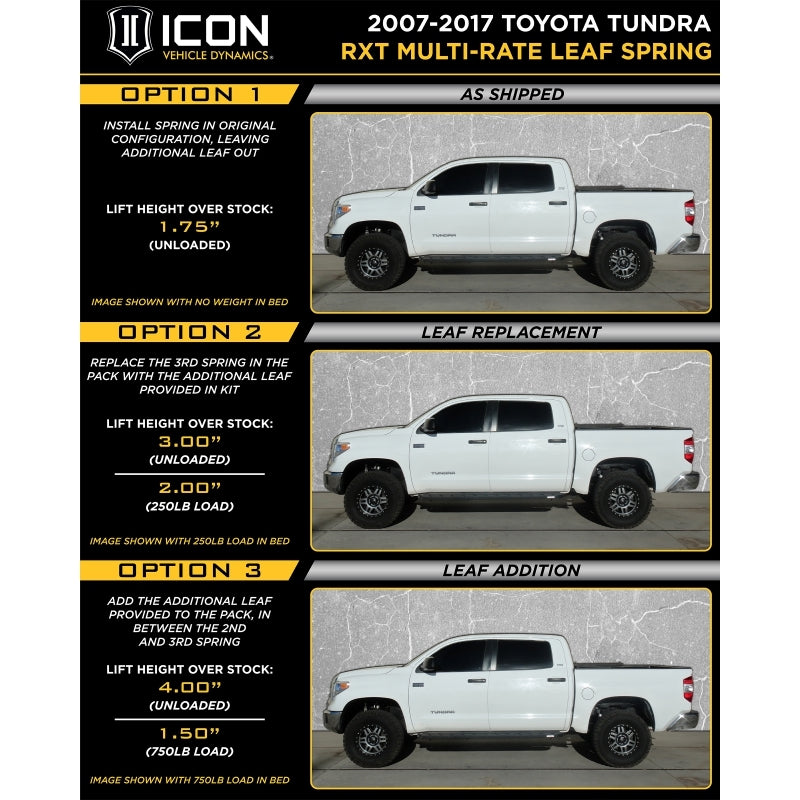

To further increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield additional spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel, this system includes a unique 2.5 Aluminum Series Omega Bypass remote reservoir shock that features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location. The easy-to-adjust bypass valves allow for end-user compression and rebound damping changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. A large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving. The rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick after a hard bottom out.

• Front coilovers equipped with CDC Valve technology allowing for 10 settings of quick and easy compression damping adjustment
• 2.5 Aluminum Series Omega Bypass rear shocks with compression and rebound adjustability provide the ultimate in ride control
• Unique side-mounted lower eyelet allows for increased rear shock travel while utilizing factory mounting location
• 2.5 Aluminum Series remote reservoir RXT rear shocks with impact extruded aluminum cylinders and 7/8" shafts
• 2.0 Series rear hydraulic bump stops reduces rear end ‘kick’ and improves overall performance
• 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel when used with RXT shock without sacrificing up-travel
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• 3 user-adjustable rear leaf spring rates for unique vehicle configurations
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Military wrap front leaf spring eyelets for increased durability
• Leaf spring tip inserts reduce noise and increase ride comfort
• Adjustable coilovers provide 1.63-3" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Shocks are fully rebuildable and revalveable
