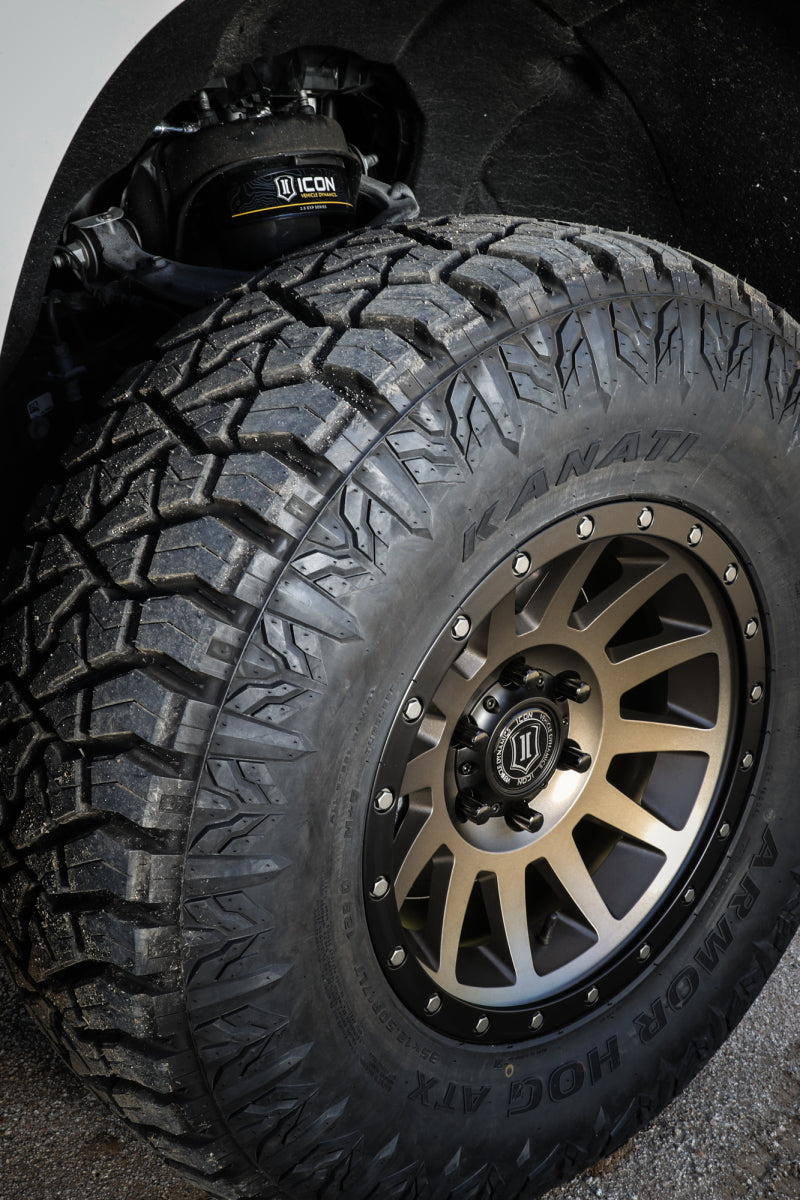

ICON 19-23 GM 1500 2.38-3.75in Stage 2 EXP Suspension System w/ Tubular UCA

The ICON Vehicle Dynamics Stage 2 EXP complete suspension system for the 2019-2023 GM 1500 pickup builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

• Adjustable front ride heights from 2.375-3.75” of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)
• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• 7/8” diameter induction hardened, chrome plated shock shaft with inverted shaft-up design
• UCAs feature ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• CNC machined 6061 aluminum components with a black anodized finish
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2019-2023 GM 1500 pickups
