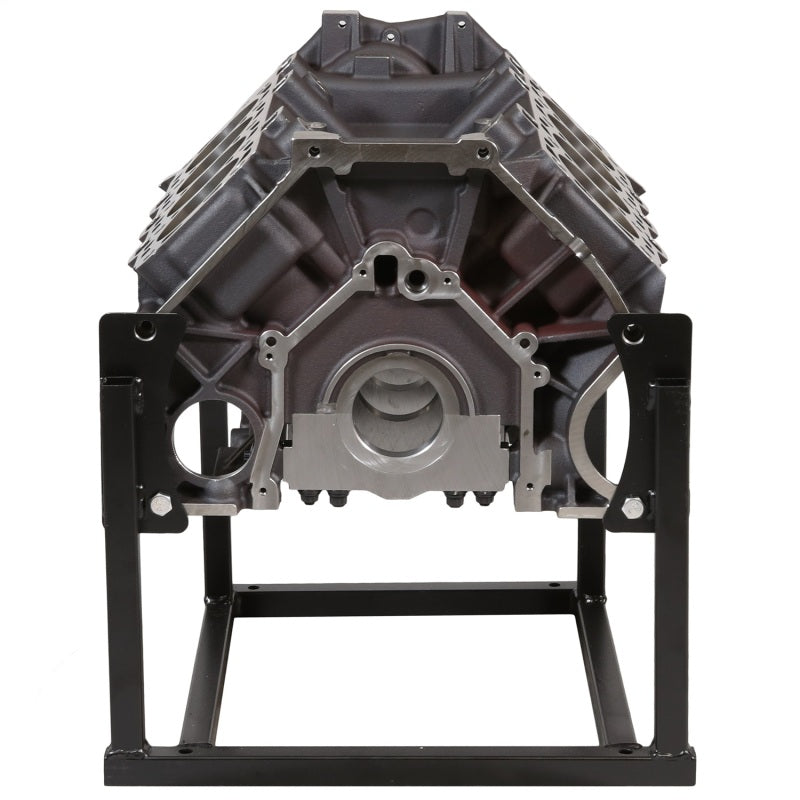

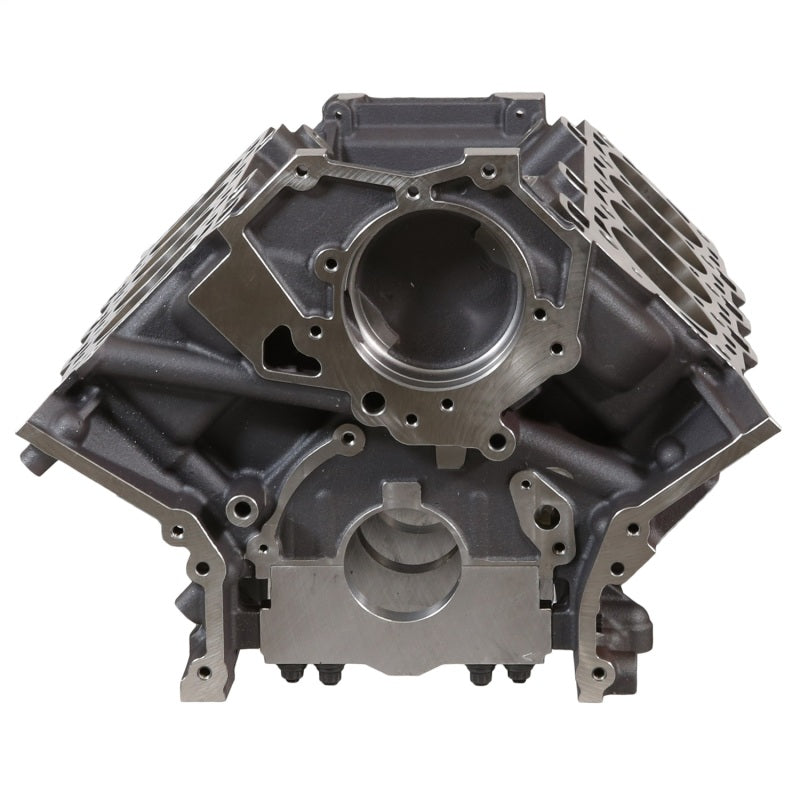

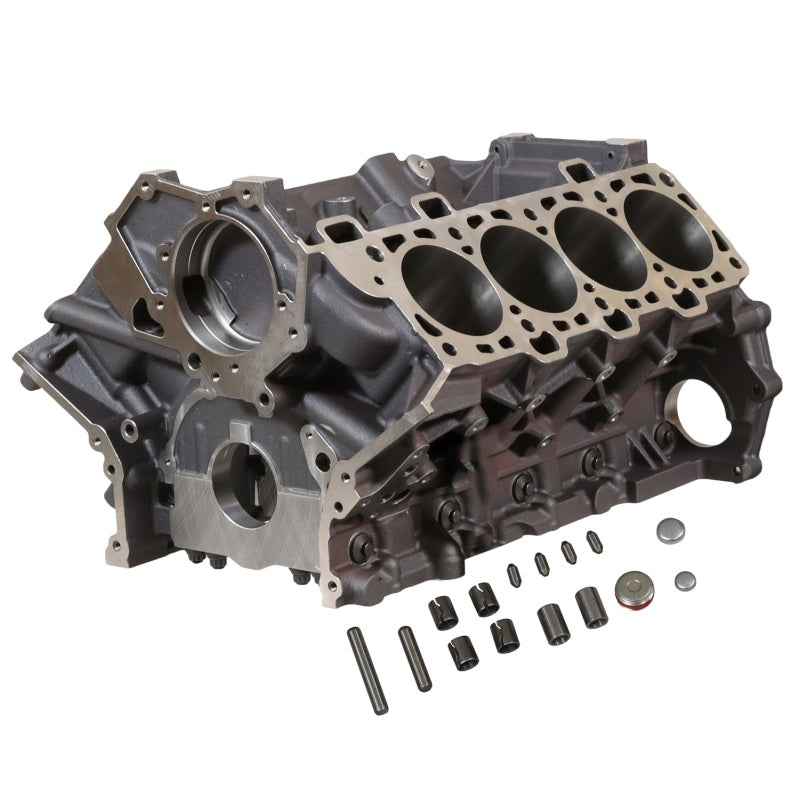

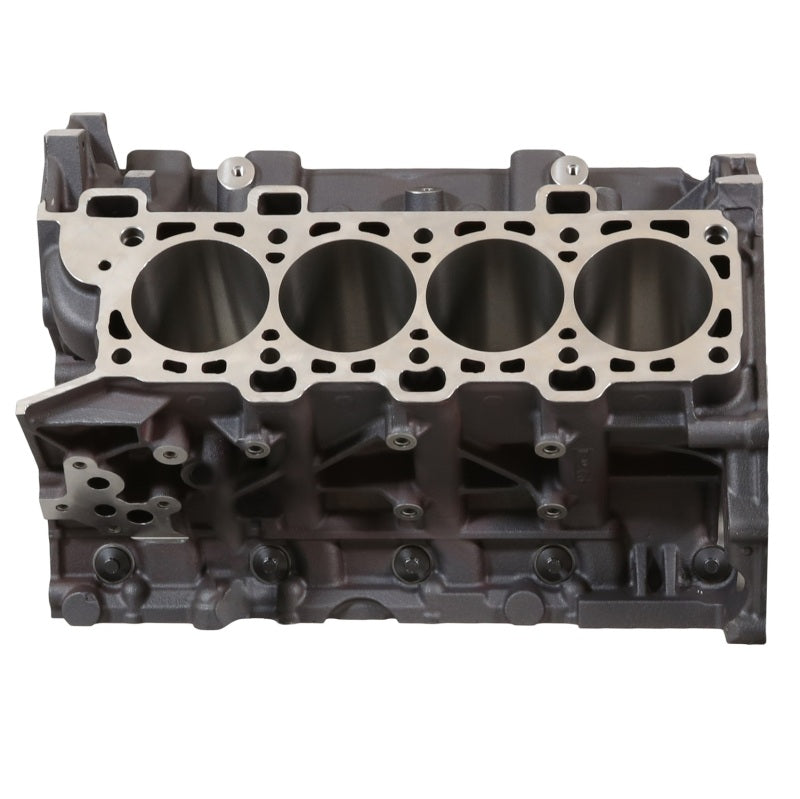

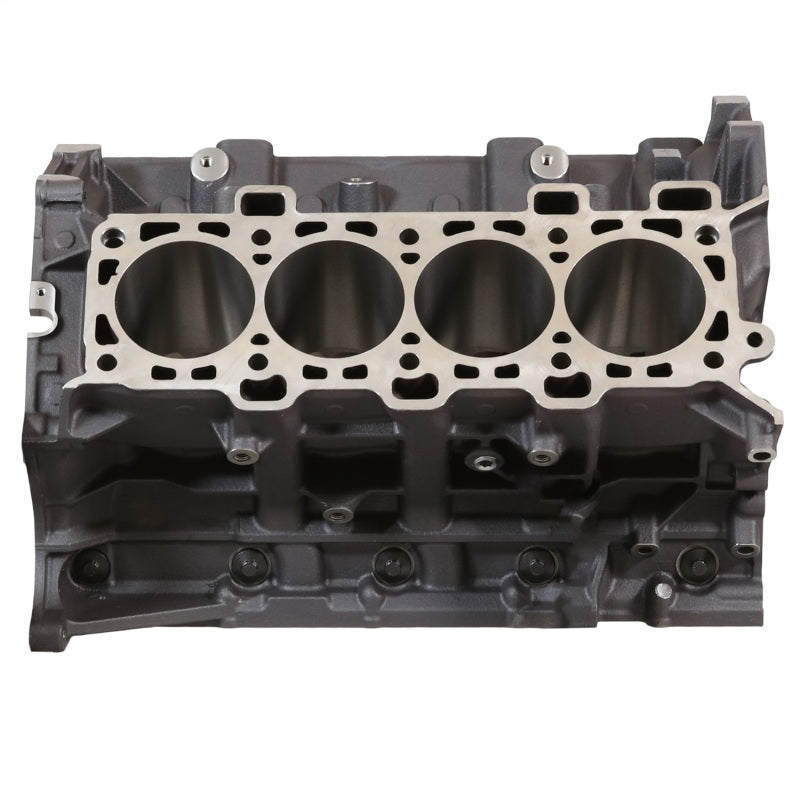

Ford Racing Coyote Cast Iron Race Block
Ford Racing
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Choose options
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Ford Performance cast iron version of the 2011-2017 Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort/boosted Coyote engine builds.
- Revised Deck Design For Added Strength Around The Water Jackets
- Accepts Gen 1; Gen 2 And Gen 3 Gt350 5.2L Cylinder Heads
- Accepts Gen 1 And Gen 2 Coyote 5.0L Cylinder Heads
- Billet Steel 6 Bolt Main Caps w/Arp Hardware
- Gen 2 And Gen 3 Gt350 5.2L Cylinder Heads
- Standard Coyote 100 mm Bore Spacing
- Lengthened Bores For Added Strength
- Finished Bore 92.2 mm [3.630 in.]
- Finished Bore 92.2 mm (3.630 in.)
- Maximum Stroke 99 mm (3.897 in.)
- Maximum Bore 95.0 mm [3.740 in.]
- Maximum Bore 95.0 mm (3.740 in.)
- Maximum Stroke 99 mm [3.897 in.]
- Deck Height 227 mm [8.937 in.]
- Deck Height 227 mm (8.937 in.)
- Maximum Displacement 5.6L
- Utilizes 12 mm Head Bolts
- Accepts Gen 1
