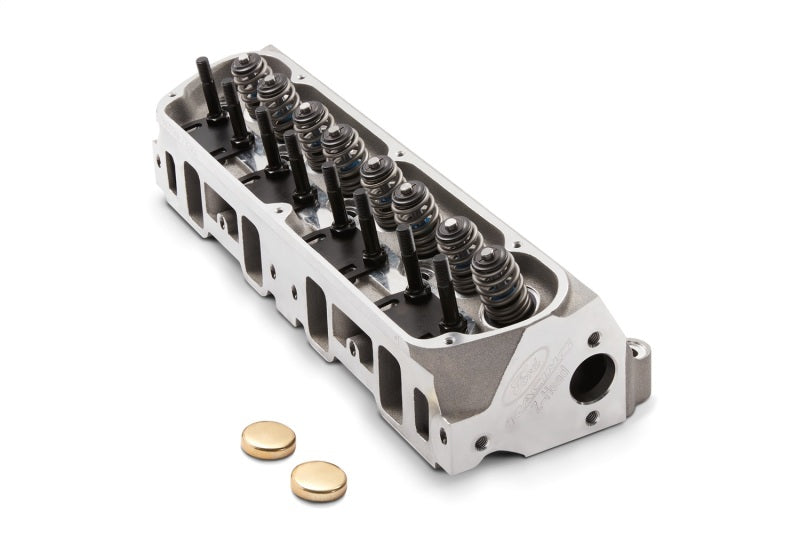

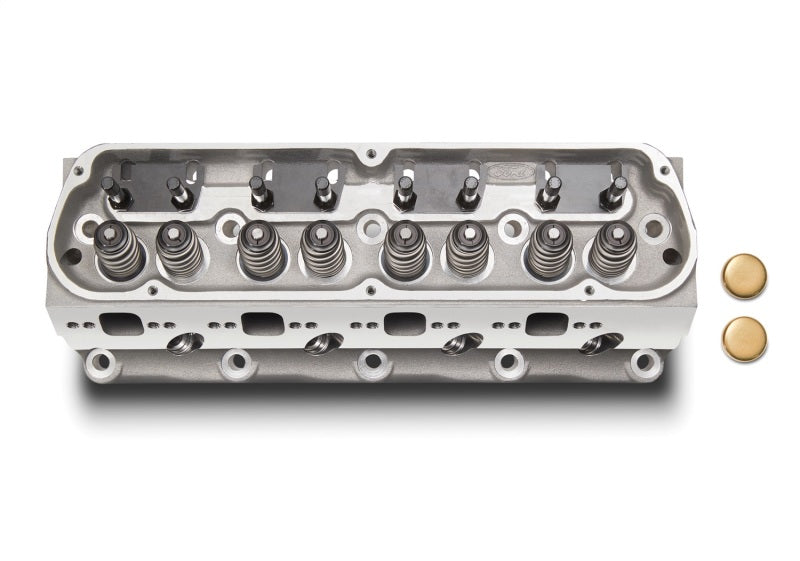

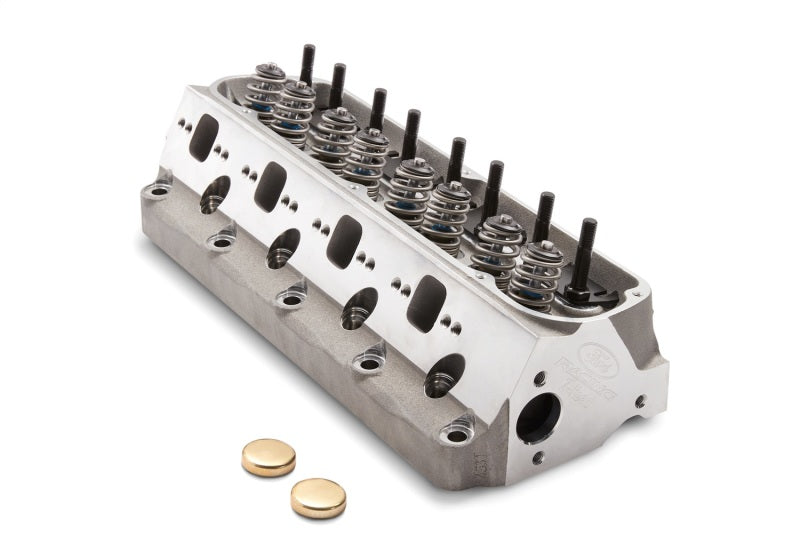

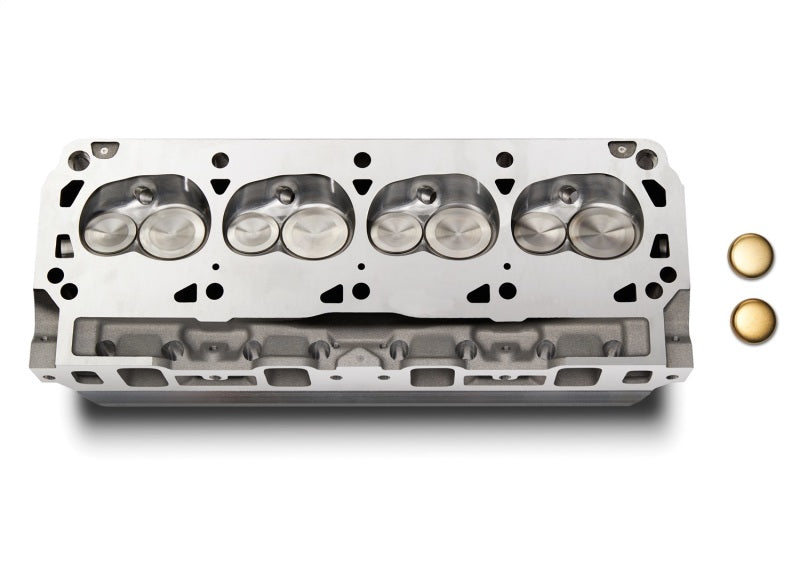

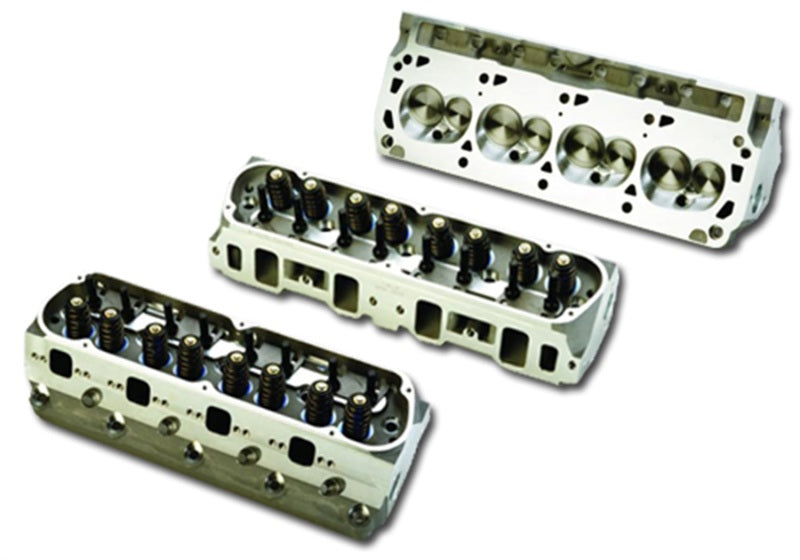

Ford Racing 302/351W Z-Head Aluminum - Assembled 63CC
Ford Racing
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Choose options
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Cast from prime A356 T6 aluminum, these 'Z' heads from Ford Racing were designed using solid modeling technology. They feature high-flow ports and steel alloy intake and exhaust valve seats installed (they do require a competition valve job and bowl blending). The manganese-bronze valve guides are installed with a semi-finished I.D. and the combustion chambers are CNC-machined. Laser-cut guideplates are included, and they accept both tapered seat and gasket-style 14mm spark plugs.
- 145 lbs. 1.80 in. Valve Spring Closed Pressure
- 358 lbs. 1.175 in. Valve Spring Open Pressure
- Steel Alloy Intake/Exhaust Valve Seats
- 85cc Exhaust Port Volume As Cast
- 204cc Intake Port Volume As Cast
- Heads are Cast w/High Flow Ports
- Cast From Prime A356 T6 Aluminum
- Manganese-Bronze Valve Guides
- 63cc CNCd Combustion Chamber
- 20 Degree Inline Valves
- Made in the USA
