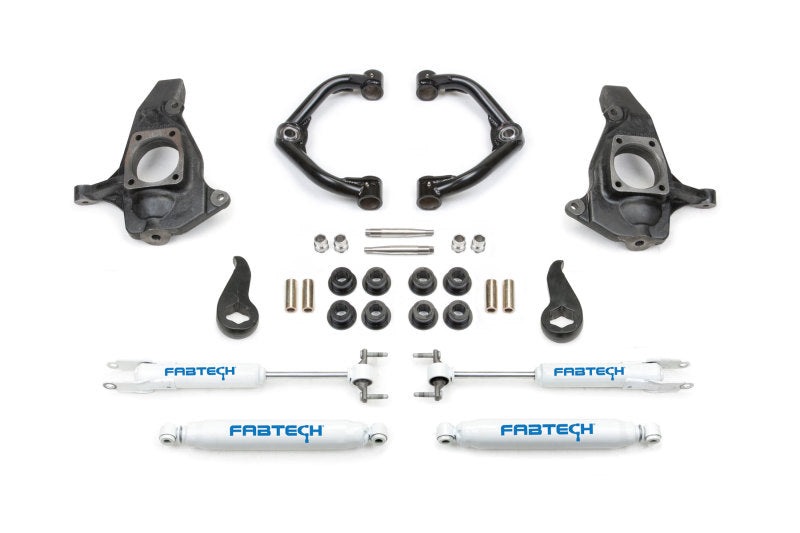

Fabtech 11-19 GM C/K2500HD/3500HD 4in Ultimate System w/Uniball UCA & Perf. Shocks
Fabtech
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Choose options
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Obtain increased wheel travel with a mild lift height with these heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25 OD, .120 wall thick chromoly tube construction with 1 diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. The replacement UCAs have been designed to work in conjunction with Fabtechs Dirt Logic 2.5 Coilover shocks providing 10 of wheel travel for a complete front suspension system upgrade. The vehicles offroad suspension performance will be greatly increased due to the extensive ride tuning of the Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25s.
- Upper Control Arms Built With Same Materials Found On Trophy Trucks
- Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
- Regulates Wheel Motion In Relation To Body
- .120" Wall 4130 Chromoly Tubing. 1.50" OD
- Custom Engineered For High Quality Ride
- 1" ID Stainless Steel American Uniball
- .250" wall DOM Bushing Barrels
- Ductile Iron Steering Knuckles
- 17-4 Stainless Misalignments
- Forged Torsion Bar Keys
- Upper Control Arm Kit
