Images are for illustrative purposes only and may not reflect the actual product

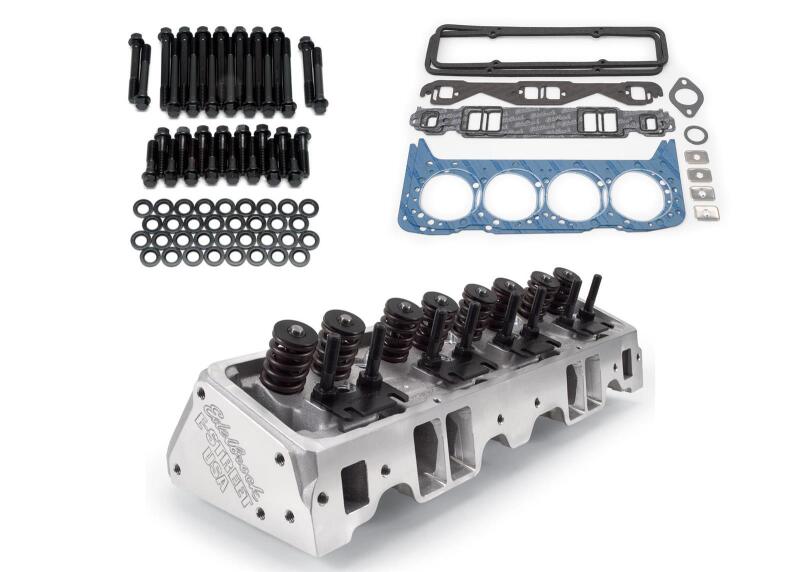

Edelbrock Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit
Edelbrock
California Warning
Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Choose options
California Warning
Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
California Warning
Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Cylinder Head Specifications: Combustion chamber volume: 70cc / 64cc; Intake runner volume: 185cc; Exhaust runner volume: 60cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.460"; Valve spring maximum lift: .550"; Rocker stud: 3/8" with guide plate; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 23°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat * Use with Hydraulic Flat Tappet Camshafts .550" max lift. (NOT Compatible with Hydraulic Roller Camshafts) Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Requires hardened pushrods. Not legal for sale or use on pollution controlled motor vehicles.
