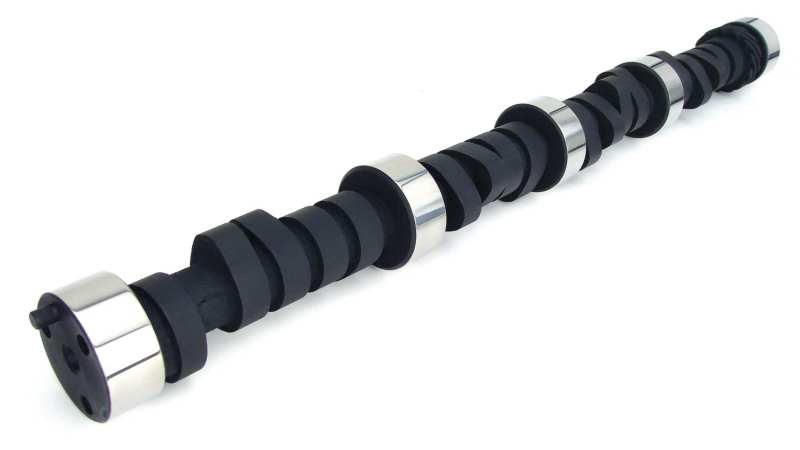

COMP Cams Camshaft CS XE262H-10
COMP Cams
California Warning
Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Choose options
California Warning
Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
California Warning
Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
excellent all around performance in street carbureted applications.Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Dyno Results Camshaft Part #12-238-2 Grind #XE262H-10 Duration @ 0.006": 262 / 270deg. Duration @ 0.050": 218 / 224deg. Max Lift w/ 1.5RR: .462" / .469". Lobe Separation: 110deg. Lobe ID#'s: 5442 / 5201. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block. Bore: 4.040". Stroke: 3.480". Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R. Edelbrock Performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 415 ft lbs @ 3700 RPM. Max Power: 348 HP @ 5300 RPM. Manifold Vacuum: 17.5" Hg @ 800 RPM & 18.5" Hg @ 1000 RPM w/ no load.
