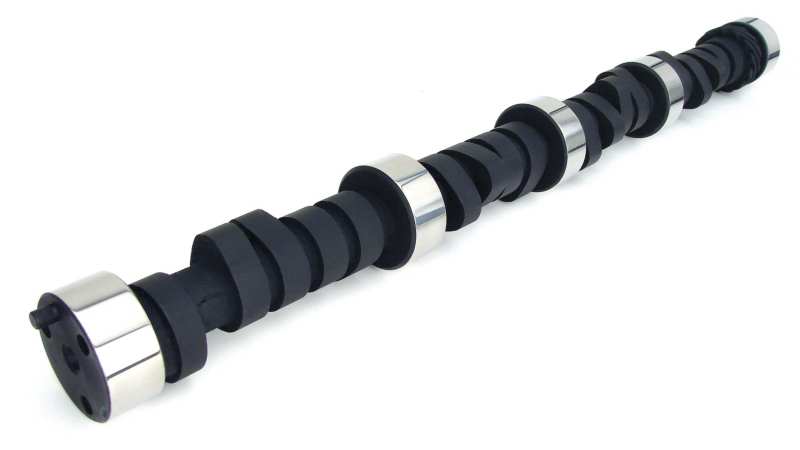

COMP Cams Camshaft CS XE250H-10
COMP Cams
California Warning
Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Special order
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Choose options
California Warning
Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Special order
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
California Warning
Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
Special order
Quantity:
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-230-2 Grind #XE250H-10. Duration @ 0.006": 250 / 260deg. Duration @ 0.050": 206 / 212deg. Max Lift w/ 1.5RR: .432" / .444". Lobe Separation: 110deg. Lobe ID#'s: 5440 / 5207. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block. Bore: 4.040" Stroke: 3.480" Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R Intake: Edelbrock Performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 417 ft/lbs @ 3700 RPM. Max Power: 333 HP @ 4700 RPM. Manifold Vacuum: 19.5" Hg @ 800 RPM & 21" Hg @ 1000 RPM w/ no load.
