Autometer Braided Stainless Steel Line #3 Dia. 4ft Length -3AN and 1/8in NPTF Fittings
AutoMeter
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Choose options
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.
Please be advised that no returns, cancellations, or refunds allowed on Special Orders once it has been placed on order regardless of the circumstances.

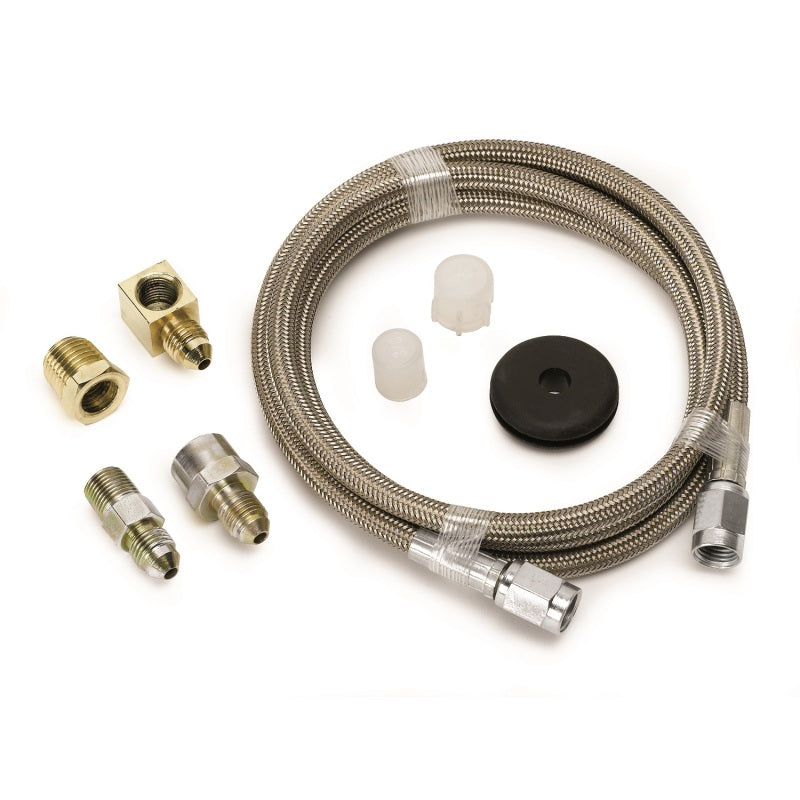

Includes 4ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
- Includes 1/8" NPT male to -3AN female straight, 1/8" FPT Female to -3AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -3AN to 1/8" NPT female 90 degree fittings
- -65 Degrees F to 450 Degrees F Operating Temperature Range
- PTFE lined hose, resistant to most fluids
- Maximum Operating Pressure - 3000 PSI
- Burst Pressure - 12,000 PSI
- Type 304 Stainless braid
